Do Solar Panels Work in the Shade? An Honest Answer
Solar panels still generate in shade, from the diffuse light that reaches them, but output drops, and how badly depends on the system's design more than the shadow itself. A chimney shadow crossing a poorly designed string can drag down the whole array; the same shadow on a well-designed system costs only the panels it actually touches. MCS surveys assess shading before quoting, so a competent installer designs around your trees and chimneys rather than pretending they are not there.
In This Guide
What shade actually does to a panel
A shaded panel is not switched off. Cloud, and the diffuse skylight that comes with it, still generates meaningful output, which is why panels work on cloudy days. Hard shade, a sharp-edged shadow from a chimney, a tree or a neighbouring roofline, is the tougher case, because a shadow crossing part of a panel restricts the current through the shaded cells.
Modern panels carry two defences built in. Bypass diodes let current route around a shaded section of a panel rather than being throttled by it, and half-cut cell designs split the panel into zones so a shadow across the bottom edge does not silence the top. Panels have quietly become much better at living with shade than the ones fitted a decade ago.
The string problem, explained simply
The bigger issue sits above the panel. Panels are wired in series strings, and a string behaves like a hosepipe: a restriction anywhere restricts the whole flow. One badly shaded panel on a string of ten can pull the other nine down towards its level. This, not the shadow itself, is what separates a shade-tolerant system from a disappointing one, and it is a design problem with known solutions.
The fixes, from free to hardware
1. Layout, which costs nothing

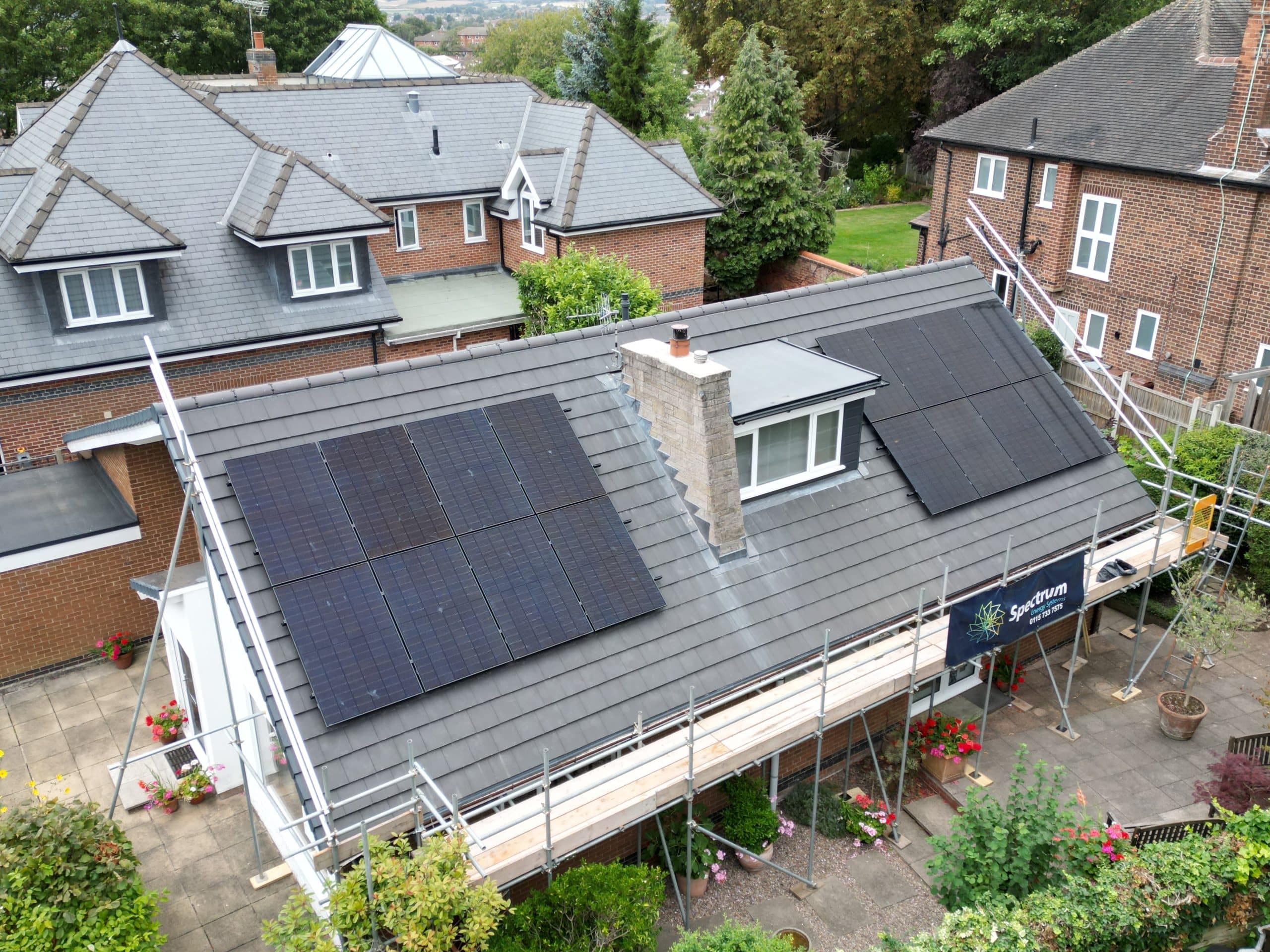

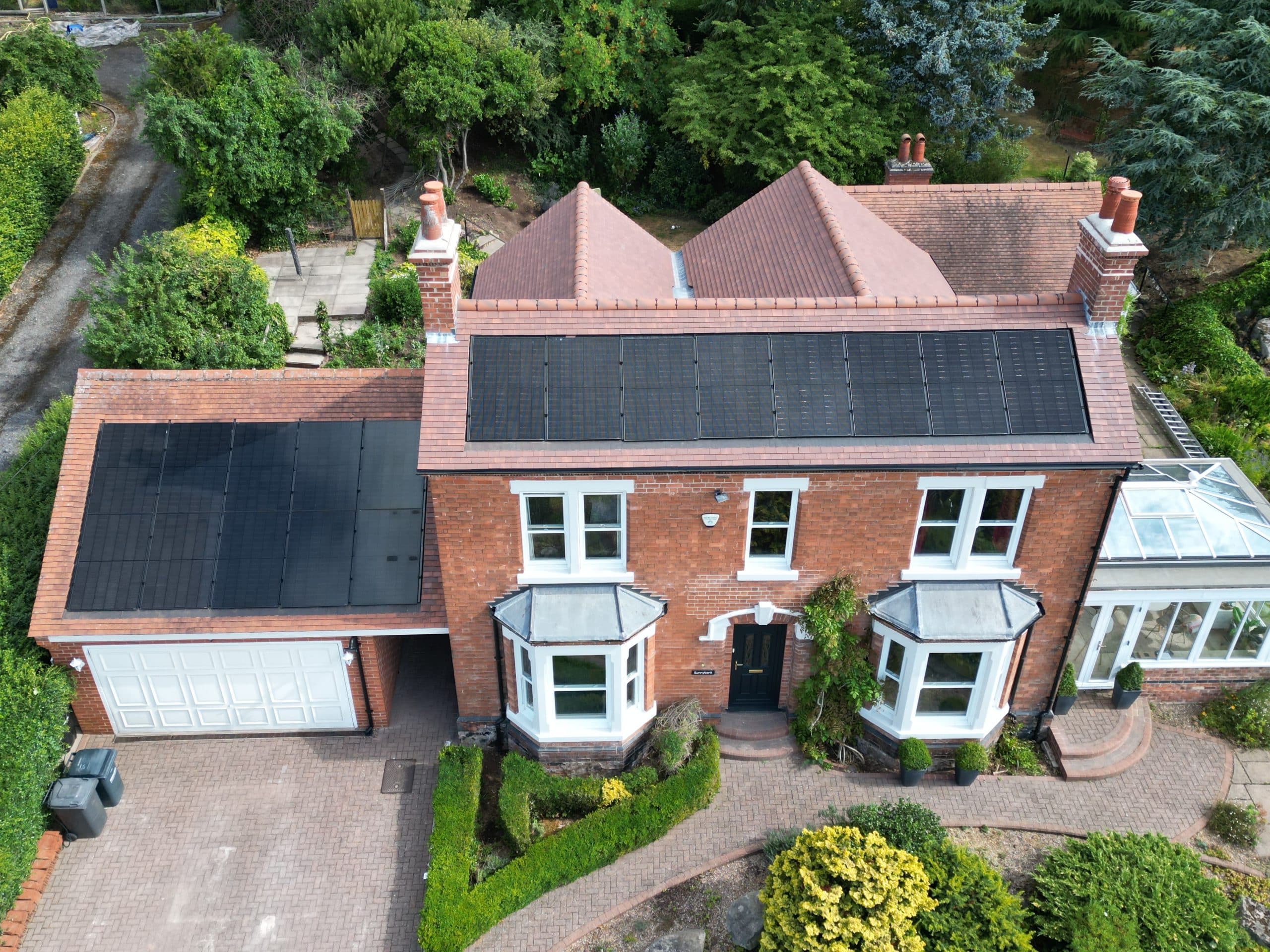

The best shade mitigation is panel placement. The install pictured is a working example: two arrays kept clear of the chimneys, on the faces the mature trees touch least. A designer who walks the roof at survey plans around the shadows you have.
2. Smart stringing
Group panels so shaded and unshaded areas sit on separate strings, each on its own inverter input. The shaded string underperforms on its own without dragging the clean one down.
3. Optimisers or micro-inverters
Panel-level electronics let every panel perform independently, so a shadow costs only the panel it touches. Genuinely valuable on complicated, shade-prone roofs; an unnecessary cost on clear ones, whatever a salesperson says.
Common UK shade sources, ranked by nuisance
| Source | Pattern | How much it matters |
|---|---|---|
| Trees to the south | Moves through the day, worse in winter's low sun | The big one. Sometimes the answer is honest: crown-lift the tree or accept the loss |
| Chimneys and dormers | Sharp shadow, predictable path | Very manageable with layout and stringing, as above |
| Neighbouring buildings | Fixed, mainly early or late in the day | Usually modest; the survey models it rather than guesses |
| Aerials, flues, satellite dishes | Thin, soft-edged shadows | Minor with modern half-cut panels; relocating the aerial is sometimes worth it |
| Seasonal leaves and debris | Builds up, especially under trees | The maintenance case: an occasional clean keeps it a non-issue |
How the survey handles shading
The MCS standards our industry works to require a shading assessment as part of the performance estimate you are quoted, which is a polite way of saying: nobody should be guessing. At survey we map what casts shadows on your roof through the day and the seasons, and the design responds, panel placement first, stringing second, panel-level electronics only where they earn their cost. The output figure on your quote then already includes the shade you actually have. If an installer quotes a shaded roof the same as a clear one without mentioning it, that tells you something about the rest of their numbers; our installer-vetting guide lists the other tells. And if your roof is genuinely too shaded, the honest answer is we say so at the survey, which costs you nothing.
Got a tree, a chimney, a doubt?
Free site survey with a proper shading assessment: you get the realistic generation figure for your roof as it is, not a brochure number. Design normally within 2 to 4 days depending on workload. Call 0115 773 7575, 8am to 8pm, Monday to Friday.
Book a feasibility assessmentFrequently asked questions
Will solar panels work in the shade?
Yes, at reduced output. Diffuse light keeps shaded panels generating, and modern bypass diodes and half-cut cells limit the damage from hard shadows. The bigger factor is system design: good layout and stringing confine the loss to the shaded panels instead of the whole array.
How much power do solar panels lose in shade?
It varies too much for one honest number: a thin aerial shadow costs very little, while a tree blocking direct sun from a whole array for hours costs a lot. This is exactly what the MCS shading assessment at survey quantifies for your specific roof, so the estimate you are quoted already includes it.
Do I need optimisers or micro-inverters for shade?
Only if the roof genuinely needs them. Panel-level electronics earn their cost on complicated, shade-prone roofs by letting each panel perform independently. On a clear roof they add expense and components without meaningful gain. Be wary of any quote that includes them by default without a shading reason.
Should I cut down a tree for solar panels?
Rarely the first move. Layout and stringing often work around a tree, and crown-lifting or thinning can recover most of the light without losing it. Where a south-side tree genuinely dominates the roof, we model the system with and without it so you can decide with real numbers. Check for tree preservation orders before touching anything.
Does a north-facing or shaded roof rule out solar?
Neither is an automatic no. Shade is a design problem with fixes, and even north-facing roofs generate more than people assume, as our north-facing guide covers. The survey gives the honest figure either way, and where the numbers do not work, we say so.
