Micro Inverter vs String Inverter: Complete UK Solar Comparison Guide
Choosing the right inverter type can significantly impact your solar system's performance, efficiency, and long-term value. Whether you're considering micro inverters or string inverters, understanding their differences is crucial for maximising your solar investment.
At Spectrum Energy Systems, established in 2011, our MCS-accredited engineers design optimal solar solutions tailored to each property's unique requirements—ensuring you get the most efficient inverter configuration for your specific situation.
Quick Navigation
What Does a Solar Inverter Do?
Solar inverters are the heart of any solar PV system, performing the critical task of converting direct current (DC) electricity generated by your solar panels into alternating current (AC) electricity that powers your home or business. Without an inverter, the energy your panels produce would be unusable for standard UK electrical appliances and grid connection.
Beyond simple conversion, modern inverters serve multiple essential functions:
- Power optimisation: Maximising energy harvest through maximum power point tracking (MPPT)
- Safety monitoring: Detecting faults and disconnecting during grid outages (anti-islanding protection)
- Performance tracking: Providing real-time data on energy production and system health
- Grid compliance: Ensuring output meets UK G98/G99 grid connection standards
- Voltage regulation: Maintaining stable power output despite variable sunlight conditions
In the UK market, the choice between micro inverters and string inverters significantly affects how efficiently your system converts sunlight into useable electricity, particularly given our variable weather conditions and frequent cloud cover.
Key Insight
Your inverter typically represents 10-15% of total system cost but influences 100% of your system's performance. Choosing the right type ensures optimal energy generation throughout your system's 25+ year lifespan.

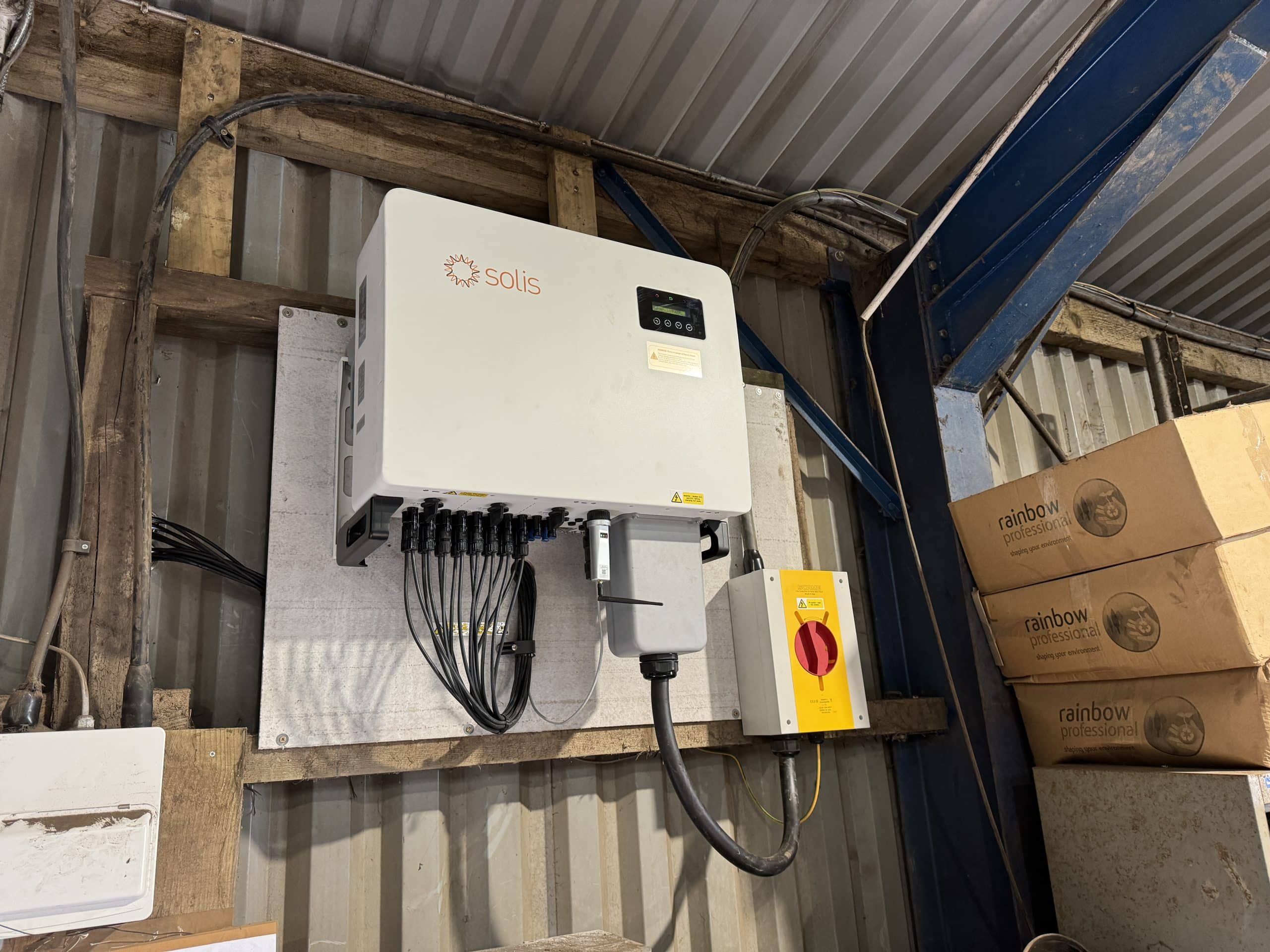

What Is a String Inverter?
String inverters, also called central inverters, are the traditional and most common inverter type in UK solar installations. These single units connect to multiple solar panels wired together in series (a "string"), converting the combined DC output into AC electricity at a centralised point.
How String Inverters Work
In a string inverter system, solar panels are connected in series like Christmas lights, creating strings of typically 8-14 panels. Each string feeds into the central inverter unit, usually mounted on a wall near your consumer unit or in a garage. The inverter processes the combined DC power from all connected panels simultaneously.
This centralised approach means the entire string operates at the output level of its weakest performing panel—if one panel is shaded or dirty, it can reduce the output of all panels in that string, similar to how a blocked pipe restricts water flow through an entire system.
✓ String Inverter Advantages
- Lower upfront cost: Typically £500-1,500 for residential systems
- Simple installation: Fewer components mean quicker setup
- Proven reliability: Decades of field testing and refinement
- Easy replacement: Single unit simplifies servicing
- Ground-level access: No roof work needed for maintenance
- Suitable for large arrays: Efficient for uniform commercial installations
✗ String Inverter Disadvantages
- Shading vulnerability: One shaded panel affects entire string
- No panel-level monitoring: Can't identify individual panel issues
- Single point of failure: System stops if inverter fails
- Shorter lifespan: Typically 10-15 years vs 25+ for panels
- Limited roof flexibility: All panels need similar orientation
- Lower yields in partial shade: 15-25% losses possible
String inverters remain the preferred choice for commercial solar panel installations on large, unshaded warehouse roofs where uniform conditions allow optimal performance at lower cost.
What Is a Micro Inverter?
Micro inverters revolutionise solar energy conversion by attaching a small inverter unit directly to each individual solar panel. Instead of sending DC power to a central location, each panel converts its electricity to AC right at the source, operating completely independently from other panels in your array.
This distributed approach means each panel performs at its maximum potential regardless of what's happening with neighbouring panels. If one panel experiences shading from a chimney or tree, only that specific panel's output decreases—the rest continue generating at full capacity.
How Micro Inverters Transform Performance
Each micro inverter contains its own maximum power point tracking (MPPT) technology, continuously optimising that specific panel's output based on immediate conditions. This panel-level optimisation proves particularly valuable in the UK's variable weather, where passing clouds create constantly shifting shade patterns across roofs.
Modern micro inverters also include sophisticated monitoring capabilities, transmitting real-time performance data for each panel to your monitoring app. This granular visibility helps identify issues immediately—from bird droppings on a single panel to gradual degradation patterns across your array.
✓ Micro Inverter Advantages
- Maximum energy harvest: 5-15% higher yields in shaded conditions
- Panel independence: Each operates at peak efficiency
- Extended warranties: Typically 20-25 years
- Flexible design: Mix orientations and panel types
- Enhanced safety: Low voltage DC, no high-voltage strings
- Precise monitoring: Identify issues to specific panels
- Easy expansion: Add panels without reconfiguring
- Rapid shutdown: Built-in safety compliance
✗ Micro Inverter Disadvantages
- Higher initial cost: 10-20% more than string systems
- More components: Multiple potential failure points
- Roof access needed: Maintenance requires working at height
- Heat exposure: Mounted in hotter roof environment
- Complex troubleshooting: More units to diagnose
- Power rating limitations: Most suited for panels up to 400-500W
For domestic solar installations with complex roofs, multiple orientations, or shading challenges, micro inverters often deliver superior long-term value despite higher upfront costs.
Key Differences Between Micro and String Inverters
Understanding the fundamental differences between these technologies helps determine which best suits your specific requirements. This comprehensive comparison examines every crucial factor affecting performance, cost, and long-term value.
| Feature | Micro Inverter | String Inverter |
|---|---|---|
| Installation Type | One inverter per panel | One inverter per array/string |
| System Efficiency | Higher in shaded/complex conditions (5-15% gain) | Optimal for uniform sunlight |
| Initial Cost | 10-20% higher upfront investment | Lower initial expenditure |
| Monitoring Capability | Individual panel performance tracking | System-level monitoring only |
| Maintenance Access | Roof access required for physical service | Ground-level inverter access |
| Warranty Period | 20-25 years typically | 5-10 years standard |
| Lifespan | 20-25 years expected | 10-15 years typical |
| Shading Impact | Minimal - only affected panel | Significant - entire string affected |
| Expansion Flexibility | Easy - add panels anytime | Complex - may need inverter upgrade |
| Safety Features | Panel-level shutdown, low DC voltage | String-level shutdown, high DC voltage |
| Ideal Applications | Complex roofs, partial shading, residential | Simple roofs, commercial arrays, full sun |
Technical Note
Power optimisers offer a middle ground—adding panel-level MPPT to string inverter systems. Whilst not true micro inverters, they provide some benefits of panel-level optimisation at intermediate cost, typically adding £50-80 per panel.
Which Inverter Type Is Best for You?
Selecting between micro and string inverters isn't about choosing the "best" technology—it's about matching the right solution to your specific property, usage patterns, and long-term objectives. Our experience across thousands of East Midlands installations reveals clear patterns for optimal inverter selection.
Choose Micro Inverters When You Have:
- Partial shading issues: Trees, chimneys, dormers, or neighbouring buildings casting shadows
- Multiple roof orientations: East/west splits, L-shaped roofs, or complex geometries
- Future expansion plans: Likely to add panels or battery storage later
- Premium efficiency goals: Maximising generation from limited roof space
- Mixed panel types: Combining different wattages or upgrading sections over time
- Residential installations: Where panel-level monitoring adds value for homeowners
- Coastal locations: Where salt air may affect centralised electronics
Choose String Inverters When You Have:
- Large, unshaded roofs: Warehouses, agricultural buildings, or south-facing arrays
- Budget constraints: Where lower upfront cost is priority
- Uniform panel orientation: All panels facing the same direction at identical angles
- Commercial scale projects: 50kW+ systems with consistent conditions
- Simple maintenance requirements: Single point of service preferred
- Ground-mount systems: Where shading is controlled and access is easy
- Stable installation: No plans for system modifications
Real-World Performance Scenarios
Consider a typical 4kW domestic system in Nottingham with partial afternoon shading from a large oak tree. With string inverters, this shading could reduce total system output by 20-30% during peak hours. Micro inverters would limit losses to just the shaded panels, maintaining 85-90% of potential output—a difference worth £150-250 annually at current electricity rates.
Conversely, a 100kW commercial installation on a Leicester warehouse roof with no shading might see only 1-2% efficiency difference between inverter types. Here, string inverters offer better value, saving £8,000-12,000 in initial costs whilst delivering comparable performance.
Cost and Return on Investment
Understanding the full financial implications of your inverter choice requires examining both immediate costs and long-term value. Whilst micro inverters command premium pricing, their enhanced performance and longevity can deliver superior lifetime returns in suitable applications.
Typical UK Installation Costs (2025)
| System Size | String Inverter System | Micro Inverter System | Additional Cost |
|---|---|---|---|
| 3kW Domestic | £4,500-5,500 | £5,200-6,400 | £700-900 |
| 4kW Domestic | £5,500-6,500 | £6,300-7,500 | £800-1,000 |
| 6kW Domestic | £7,000-8,500 | £8,200-9,900 | £1,200-1,400 |
| 10kW Commercial | £10,000-12,000 | £11,800-14,200 | £1,800-2,200 |
| 50kW Commercial | £35,000-42,000 | £42,000-50,000 | £7,000-8,000 |
Lifetime Value Analysis
Beyond initial investment, consider these long-term financial factors:
25-Year Cost Comparison (4kW Domestic System)
String Inverter Path:
- Initial system: £6,000
- Inverter replacement (year 12): £800-1,200
- Lost generation from shading: £2,500-3,750
- Total 25-year cost: £9,300-10,950
Micro Inverter Path:
- Initial system: £7,000
- No replacement needed (25-year warranty)
- Additional generation from efficiency: £1,875-3,125
- Total 25-year cost: £5,875-7,000 (accounting for extra generation)
These calculations assume typical UK conditions with moderate shading. Your specific situation may vary based on shading severity, electricity prices, and system usage patterns. Our solar funding solutions can help structure investment for optimal returns.
Payback Period Considerations
Micro inverters typically extend payback periods by 6-12 months due to higher upfront costs. However, in shaded conditions, their superior generation can actually accelerate payback by maintaining higher output levels. A well-designed micro inverter system in partial shade might achieve payback in 5-6 years versus 6-7 years for a struggling string system.
Why Inverter Choice Matters for Long-Term Success
Your inverter selection influences every aspect of system performance, from daily energy generation to decades-long reliability. This decision impacts not just immediate costs but your entire solar investment journey.
System Safety and Compliance
UK safety regulations require effective DC isolation for firefighter safety. Micro inverters inherently provide panel-level shutdown, instantly dropping DC voltages to safe levels. String inverters require DC isolators at strategic points to meet safety standards, typically adding £200-400 to installation costs for additional isolation equipment.
Both inverter types must comply with G98/G99 grid connection standards. Our expert solar fitting services ensure proper DNO applications and compliance regardless of inverter choice.
Monitoring and Maintenance Intelligence
The granular monitoring provided by micro inverters transforms system maintenance. Instead of noticing general performance degradation, you can identify specific issues immediately:
- Bird droppings affecting panel #7
- Developing micro-cracks in panel #14
- Shading patterns changing with seasonal tree growth
- Individual panel degradation rates over time
This intelligence enables targeted maintenance, reducing service costs and maximising generation. String inverter monitoring shows only combined output, making fault diagnosis more challenging and time-consuming.
Integration with Battery Storage
As battery storage becomes increasingly popular, inverter choice affects integration options. String inverters often pair naturally with AC-coupled batteries, whilst micro inverters provide flexible DC or AC coupling options. Consider future storage plans when selecting your inverter technology.
Insurance and Warranty Implications
Some insurance providers recognise the enhanced safety of micro inverter systems, potentially affecting premium calculations (Unverified - check with your insurer). The extended warranties (20-25 years) also provide peace of mind that matches your panels' expected lifespan, eliminating concerns about mid-life inverter replacement costs.
Important Consideration
Some panel manufacturers specify compatible inverter brands to maintain warranty validity. Always verify compatibility between your chosen panels and inverter system. Our MCS-accredited designers ensure all components work harmoniously whilst maintaining full warranty coverage.
Professional Guidance from Spectrum Energy Systems
Choosing between micro and string inverters requires careful analysis of your specific property, energy goals, and budget. At Spectrum Energy Systems, our comprehensive site assessment process evaluates every factor affecting inverter performance, ensuring you receive the optimal solution for your unique situation.
Our Design Process Includes:
- Detailed shading analysis: Year-round shade mapping using advanced modelling software
- Structural assessment: Evaluating roof orientations and installation complexities
- Energy usage profiling: Matching system design to consumption patterns
- Financial modelling: Comparing lifetime costs and returns for each option
- Future-proofing consultation: Planning for potential expansion or storage addition
- Compliance verification: Ensuring G98/G99 approval and building regulations
With over 14 years serving the East Midlands and 10MW+ of solar capacity installed, we've mastered the art of matching inverter technology to property requirements. Our NICEIC-certified electricians and MCS-accredited installers deliver systems that perform optimally from day one.
Why Professional Design Matters
Inverter selection involves complex trade-offs between performance, cost, and reliability. DIY assessments often miss crucial factors like:
- Voltage drop calculations affecting string sizing
- Temperature derating in different mounting configurations
- Module mismatch losses in mixed arrays
- Grid impedance effects on inverter efficiency
- Harmonic distortion in local grid conditions
Our professional design service eliminates guesswork, providing detailed performance projections and ROI calculations specific to your chosen inverter configuration.
Ready to Optimise Your Solar Investment?
Let our experts design the perfect inverter solution for your property. Get professional guidance on micro vs string inverters tailored to your specific needs.
Get Your Free Design Consultation Speak to Our TeamAdvanced Considerations for Inverter Selection
Beyond basic performance metrics, several advanced factors influence optimal inverter choice. Understanding these technical considerations helps make truly informed decisions about your solar investment.
Temperature Performance and Derating
Inverter efficiency decreases with temperature—a critical consideration for UK installations. String inverters, typically mounted in cooler garages or utility rooms, maintain consistent efficiency. Micro inverters, exposed to roof temperatures that can reach 50-60°C during UK summer heatwaves, may experience 2-3% efficiency losses in extreme conditions.
However, micro inverters' distributed nature means better heat dissipation compared to concentrated heat in string inverters processing full array power. Modern micro inverters include advanced thermal management, minimising temperature-related losses.
Grid Support and Smart Grid Integration
UK grid operators may require certain smart inverter capabilities for grid stability, particularly for larger installations under G99 regulations. Modern inverters can provide:
- Reactive power support for voltage regulation
- Frequency response for grid balancing
- Remote curtailment capabilities during oversupply
- Power quality monitoring and reporting
Both micro and string inverters offer these features, but implementation differs. String inverters provide centralised grid interaction, whilst micro inverters offer distributed grid support—potentially valuable as smart grid technology evolves.
Lightning and Surge Protection
The UK experiences approximately 200,000-300,000 lightning strikes annually, making surge protection essential. String inverters' high-voltage DC strings are more vulnerable to lightning-induced surges, requiring robust protection devices adding £200-400 to installation costs.
Micro inverters' low-voltage architecture inherently resists surge damage, with each unit containing built-in protection. This distributed approach means lightning damage typically affects individual panels rather than entire systems.
Industry Insight
Recent advances in string inverter technology, including multiple MPPT trackers and selective panel optimisation, narrow the performance gap with micro inverters. However, these features increase string inverter costs, reducing their traditional price advantage.
Regional Considerations for East Midlands Installations
Our extensive experience across Nottingham, Derby, Leicester, and Lincoln reveals regional factors affecting inverter performance:
Urban vs Rural Installation Patterns
Urban areas (Nottingham, Leicester city centres): Dense housing creates complex shading from neighbouring properties. Micro inverters typically deliver 10-20% better yields in these environments. Air pollution also causes uneven soiling patterns favouring panel-level optimisation.
Rural locations (Lincolnshire farmland, Peak District edges): Open spaces with minimal shading suit string inverters perfectly. Agricultural buildings' large, uniform roofs maximise string inverter cost advantages whilst maintaining optimal performance.
Industrial Heritage Building Challenges
The East Midlands' industrial heritage means many retrofits onto Victorian mills and warehouses with complex roof structures. These installations often feature:
- Multiple roof sections at different heights
- Sawtooth roof profiles creating variable shading
- Structural limitations requiring distributed panel placement
- Listed building constraints limiting visible equipment
Micro inverters excel in these challenging environments, maximising generation from architecturally complex installations whilst maintaining aesthetic requirements.
Future-Proofing Your Inverter Decision
Solar technology continues evolving rapidly. Your inverter choice should accommodate future developments and changing energy needs:
Emerging Technologies
Bifacial panels: These double-sided panels benefit from micro inverters' ability to optimise variable rear-side generation independently.
High-efficiency panels: Next-generation panels exceeding 600W may require careful micro inverter selection or parallel configurations. Most modern micro inverters handle up to 500W panels effectively.
DC-coupled storage: Future battery systems may integrate better with certain inverter architectures. Consider storage compatibility when selecting inverters.
Regulatory Evolution
UK building regulations continue to evolve with emphasis on solar safety and system monitoring. Micro inverters' inherent compliance with safety standards provides regulatory confidence. String inverters may require additional safety devices as standards develop.
The UK's transition toward smart homes and time-of-use energy tariffs may benefit from the granular control offered by micro inverters, potentially enabling more sophisticated energy management strategies in future.
Making Your Final Decision
Selecting between micro and string inverters ultimately depends on your unique combination of property characteristics, financial objectives, and energy goals. Neither technology is universally superior—each excels in specific applications.
Decision Framework
Choose micro inverters if you answer YES to 3+ of these:
- Is your roof partially shaded during peak hours?
- Do you have panels facing multiple directions?
- Is maximum energy harvest your priority over initial cost?
- Do you value detailed performance monitoring?
- Are you planning future system expansion?
- Is your installation architecturally complex?
Choose string inverters if you answer YES to 3+ of these:
- Is your roof completely unshaded year-round?
- Are all panels facing the same direction?
- Is minimising upfront cost your primary concern?
- Do you prefer simple, proven technology?
- Is easy ground-level maintenance important?
- Is your installation 30kW or larger?
Remember, professional design services can identify factors you might overlook. Our case studies demonstrate how proper inverter selection transforms system performance across diverse East Midlands properties.
Transform Your Property with Optimal Solar Design
Don't guess which inverter technology suits your needs. Our MCS-accredited team provides detailed site assessments and performance modelling to ensure maximum returns from your solar investment.
Request Your Free Assessment Call 0115 773 7575Frequently Asked Questions About Solar Inverters
Conclusion: Empowering Your Solar Decision
The choice between micro inverters and string inverters significantly impacts your solar system's performance, reliability, and financial returns. Whilst string inverters offer proven reliability and cost-effectiveness for simple, unshaded installations, micro inverters excel in complex environments where panel-level optimisation maximises energy harvest.
Key takeaways for your inverter decision:
- Assess your specific shading patterns and roof complexity honestly
- Consider long-term value, not just upfront costs
- Factor in warranty periods and expected replacement timing
- Evaluate monitoring needs and maintenance preferences
- Plan for potential future expansion or battery integration
- Seek professional design services for accurate performance modelling
At Spectrum Energy Systems, we've spent over 14 years perfecting solar installations across the East Midlands. Our MCS-accredited engineers and NICEIC-certified electricians understand the nuances of both technologies, ensuring your system delivers optimal performance regardless of inverter choice.
Remember, there's no universal "best" inverter—only the best solution for your unique situation. Professional assessment and design ensure your solar investment performs brilliantly for decades, maximising both environmental benefits and financial returns.
Start Your Solar Journey with Confidence
Ready to harness solar energy with the perfect inverter configuration? Our comprehensive site assessment includes detailed shading analysis, performance modelling, and ROI calculations for both micro and string inverter options.
Get Your Personalised Solar Design Learn About Our ExpertiseAbout Spectrum Energy Systems: Established in 2011, we're MCS-accredited solar installers serving Nottingham, Derby, Leicester, Lincoln, and the wider East Midlands. From initial consultation through installation to ongoing maintenance, we deliver comprehensive solar solutions that maximise your investment. Explore our ultimate guide to installing solar PV or browse our technical articles for more insights.
